LED Fluorescent Lamp Tube Parts T5 T8 Light Box Line Socket Cable Connecting Line LED Light Foot Line Lamp Tube Clip Buckle

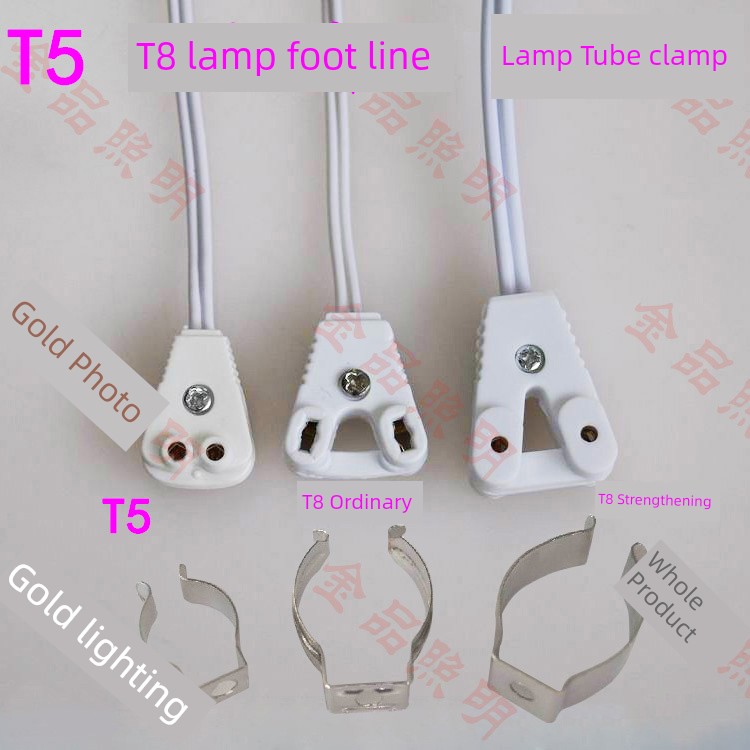

[product model] lamp foot wire/lamp tube clip

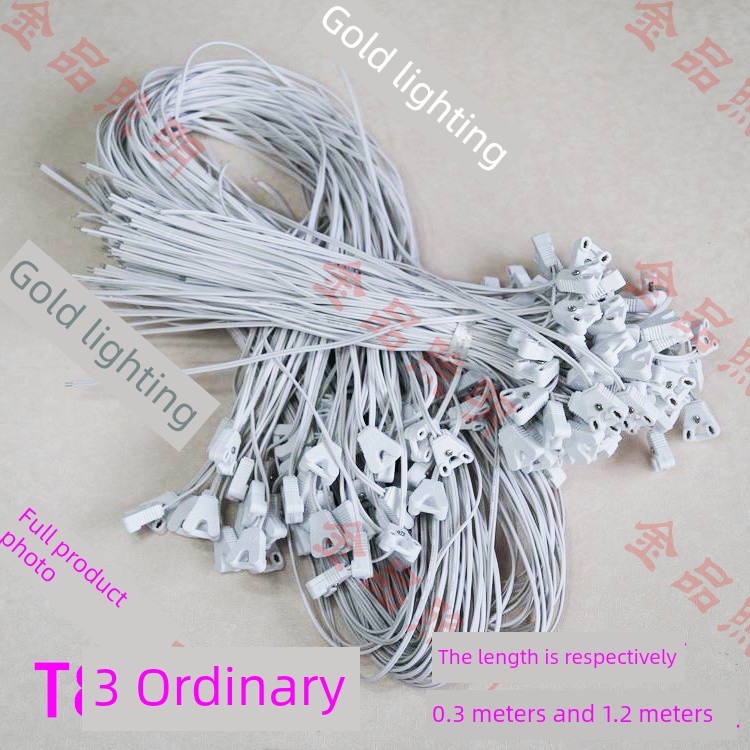

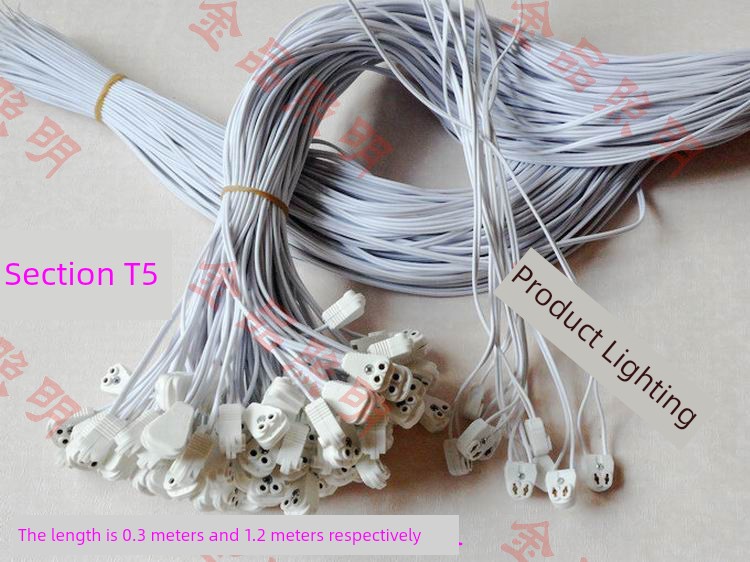

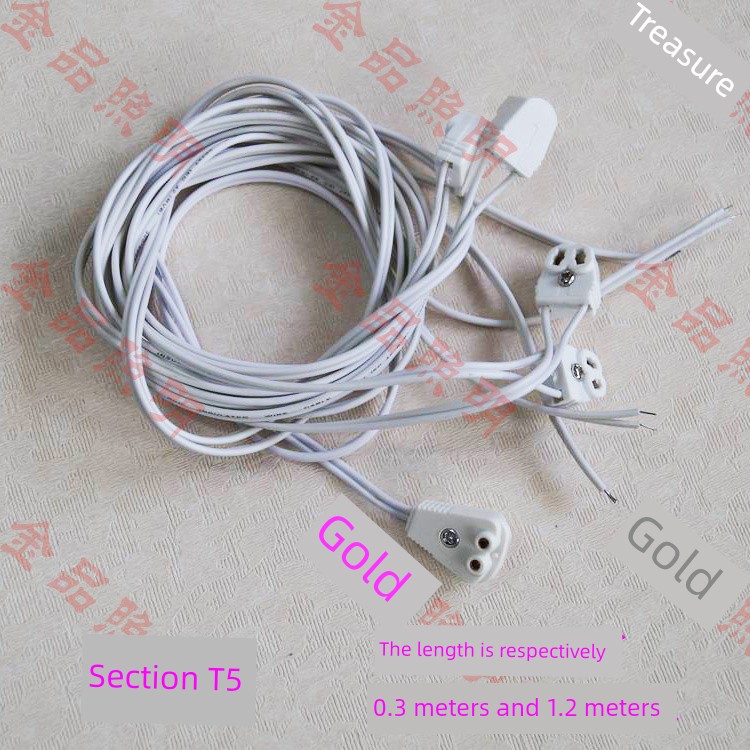

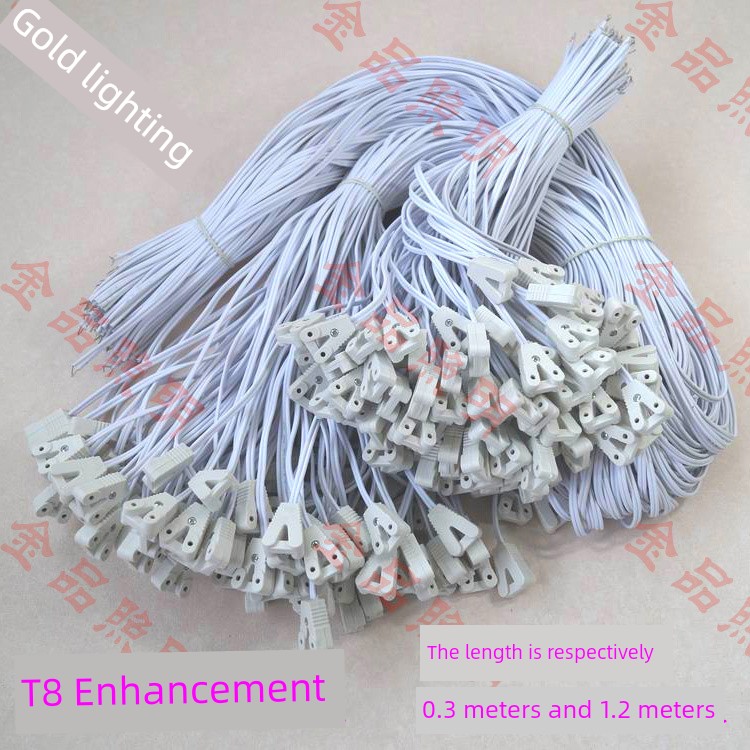

[product size] lamp foot line:Single-head options are available in total lengths of 0.3m, 0.7m, 1.2m, and 2m to choose from. the double-head option has a total length of 1.3m. The following are all lamp clipsReference size：

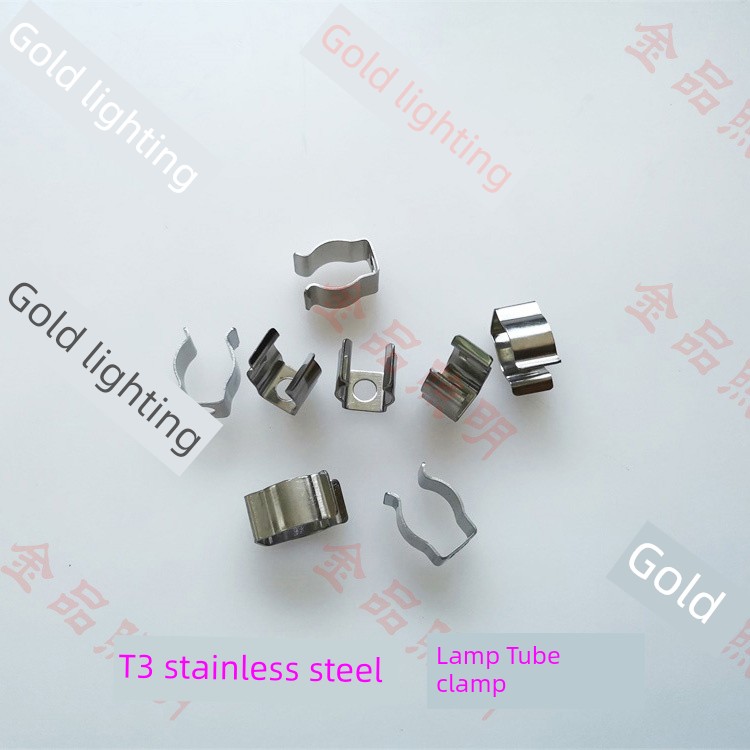

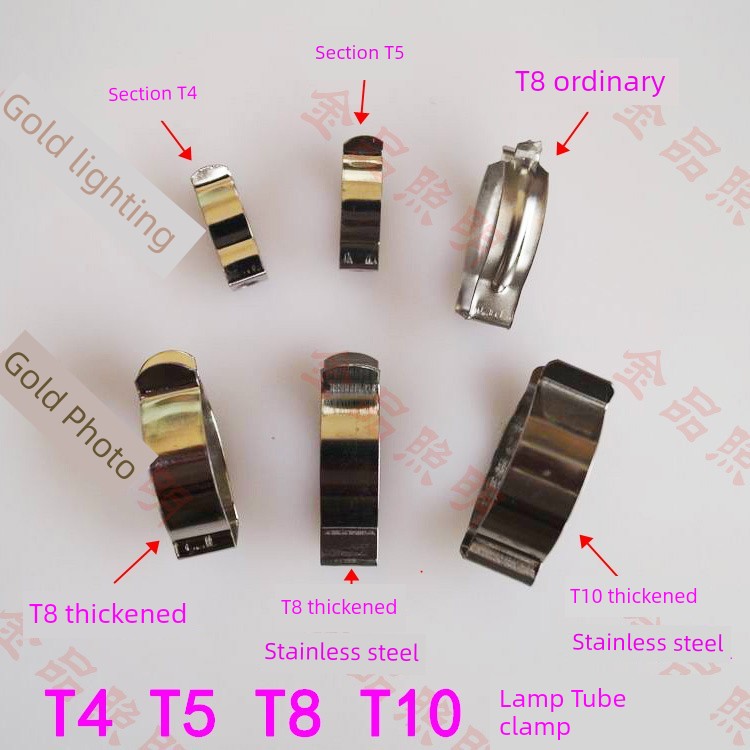

T3 lamp clamp: wide11mm*height 15mm (side width 8mm);Suitable for light tubes with a diameter of about 11-12mm.

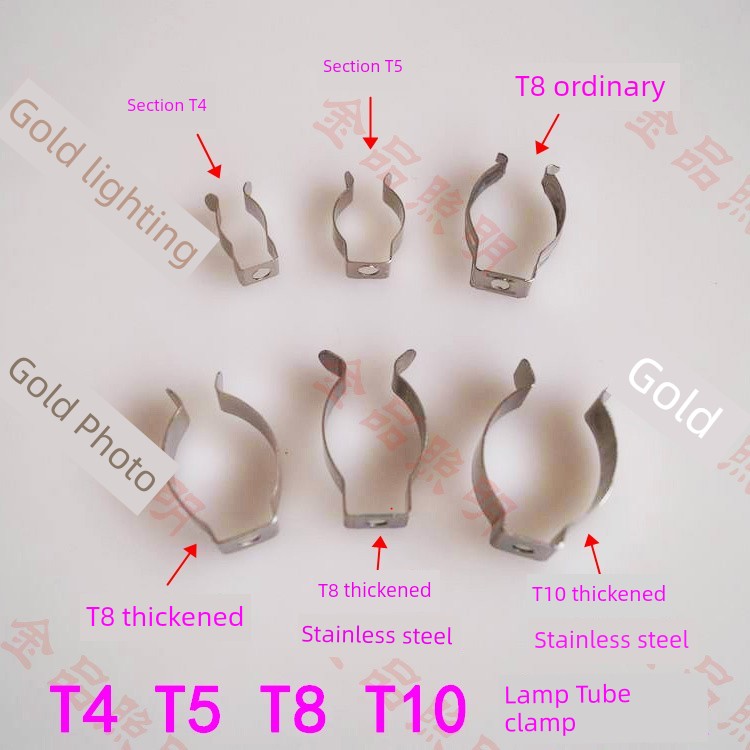

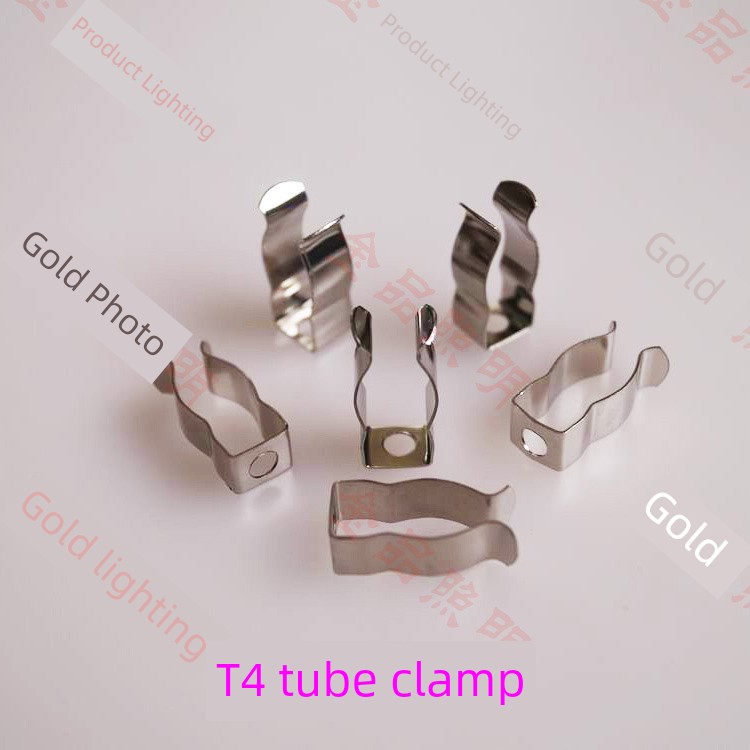

T4.Lamp clampWidth11mm*height 21.5mm (side width 7mm);Suitable for light tubes with a diameter of about 13-14mm.

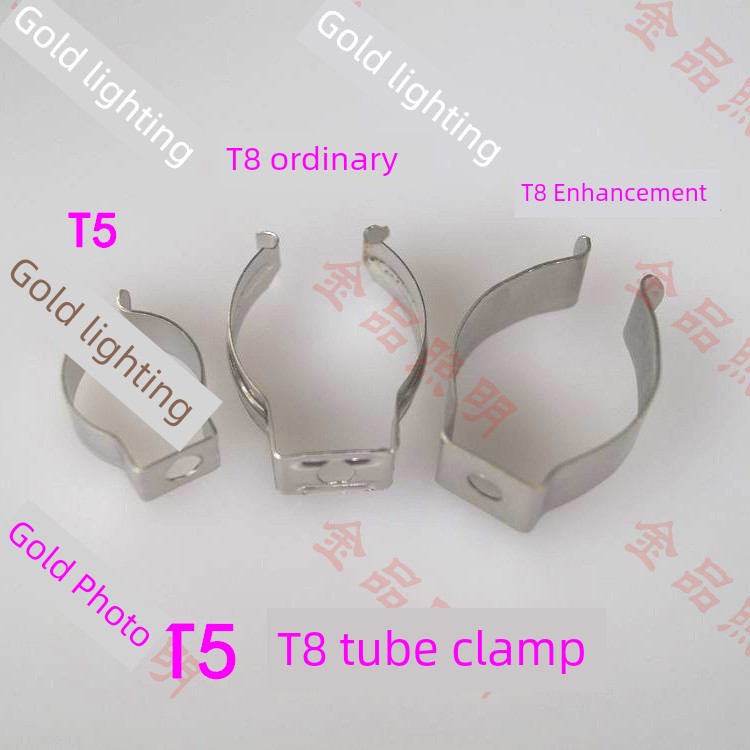

T5 regular model: wide15mm*23mm high (side width 7mm);Suitable for light tubes with a diameter of about 16-17mm.

T5.Stainless steelStyle: wide14mm*height 25.5mm (side width 8mm);Suitable for light tubes with a diameter of about 16-17mm.

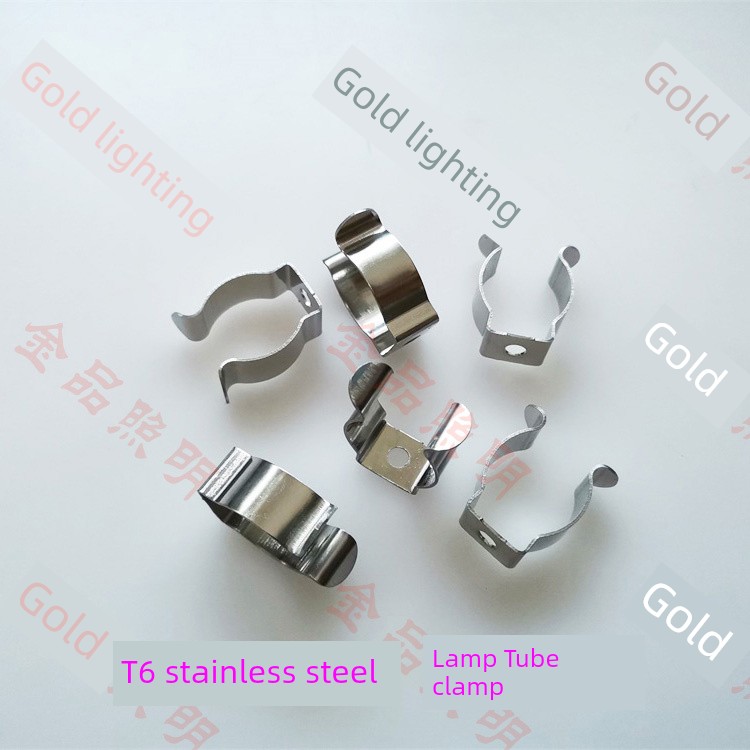

T6.Lamp clampWidth19mm*height 24mm (side width 9.5mm);Suitable for light tubes with a diameter of about 18-20mm.

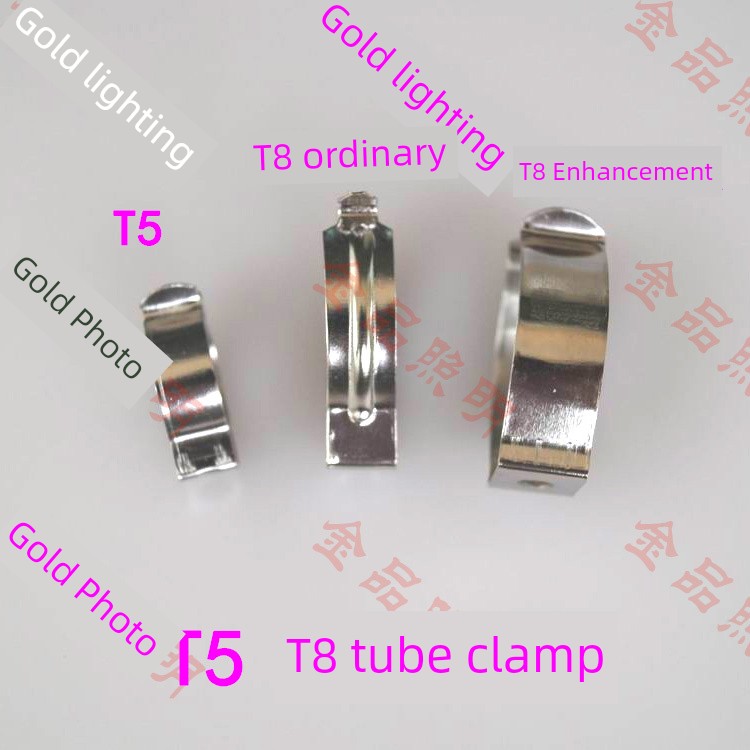

T8standard model: width 23mm*height 31mm (side width 8mm);Suitable for light tubes with a diameter of about 25-26mm.

T8 thickened version: width 23mm*height 32mm (side width 10mm)；Suitable for light tubes with a diameter of about 25-26mm.

T8 stainless steel model: width 23mm*height 35mm (side width 10mm)；Suitable for light tubes with a diameter of about 25-26mm.

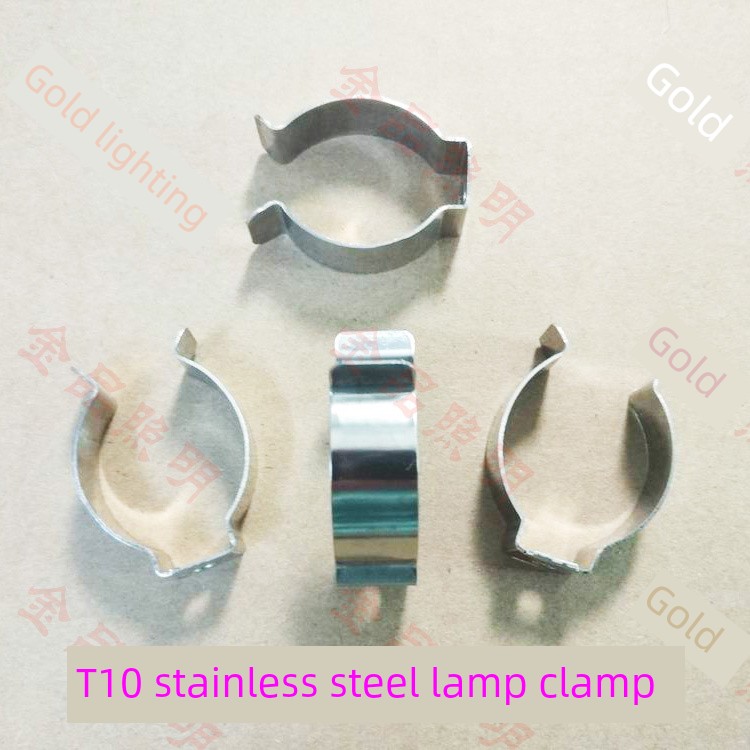

T–10Lamp clamp: width 26mm*height 36mm (side width 12mm)。Suitable for light tubes with a diameter of about 30-32mm.

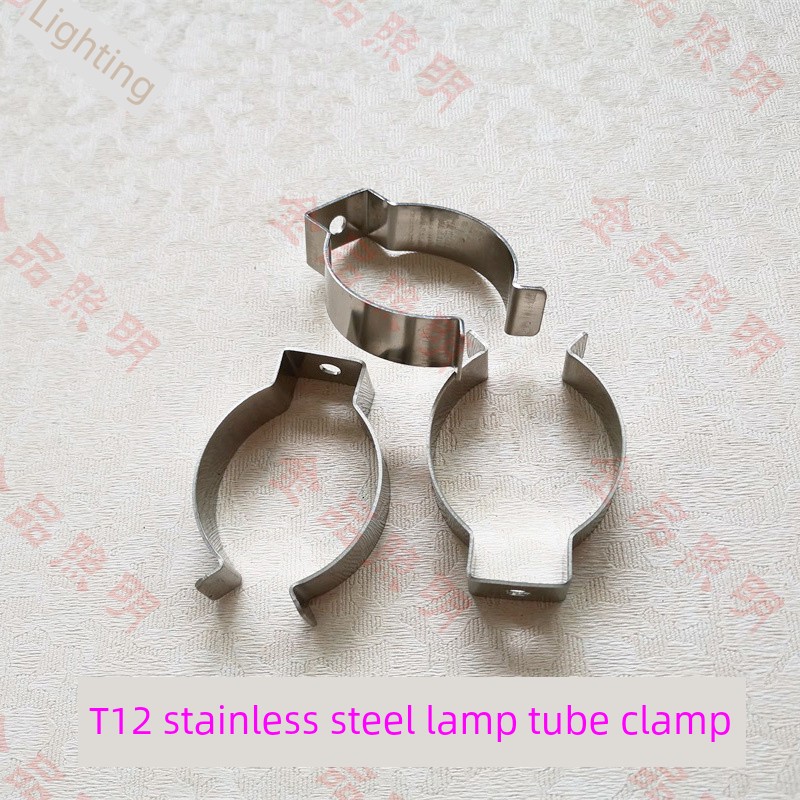

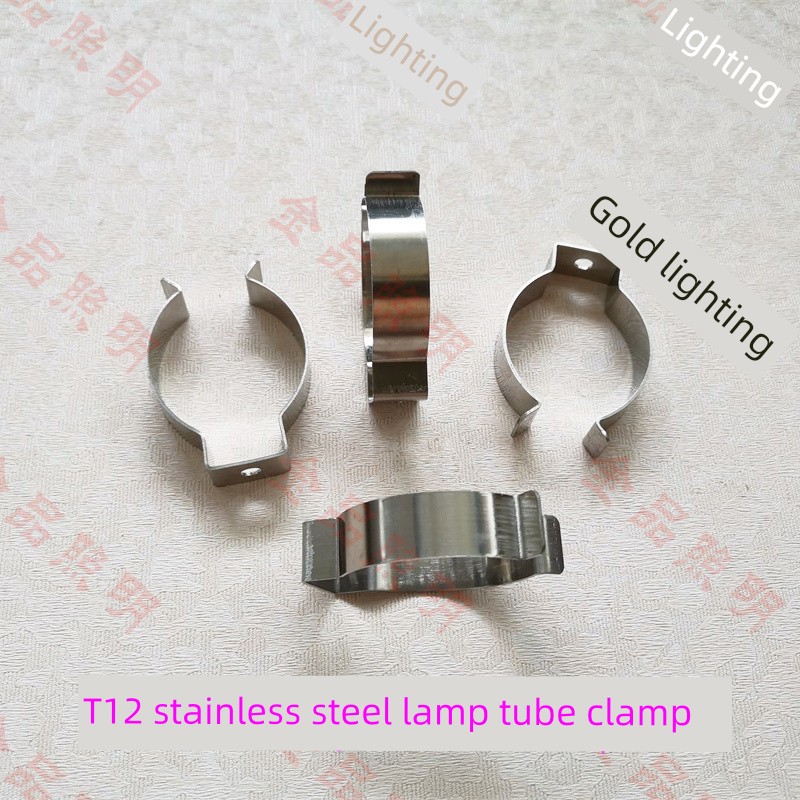

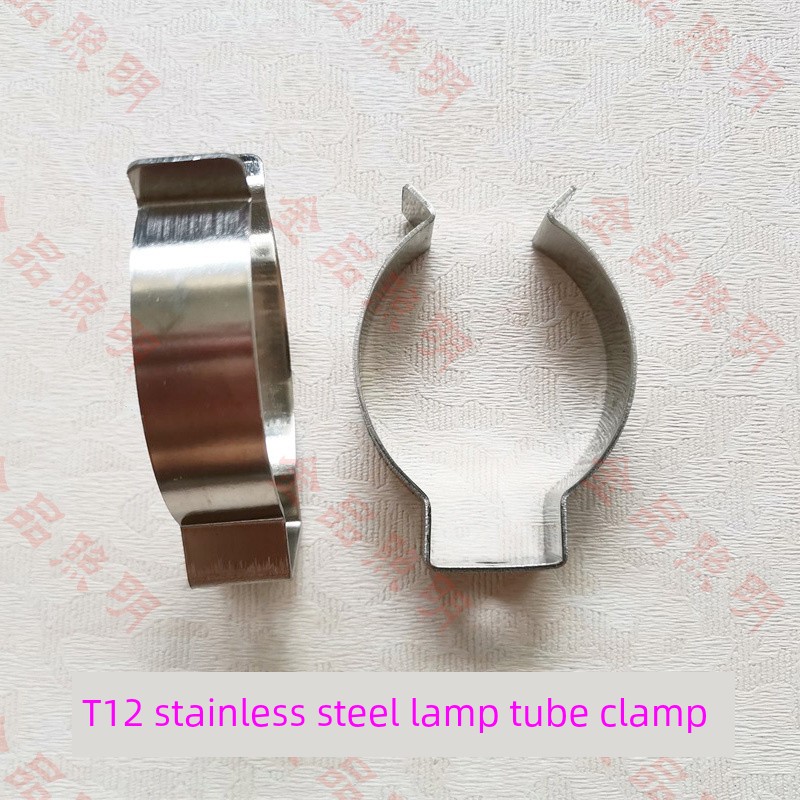

T12.Lamp clamp: width 35mm*height 50mm (side width 12mm)。Suitable for light tubes with a diameter of about 36-40mm.

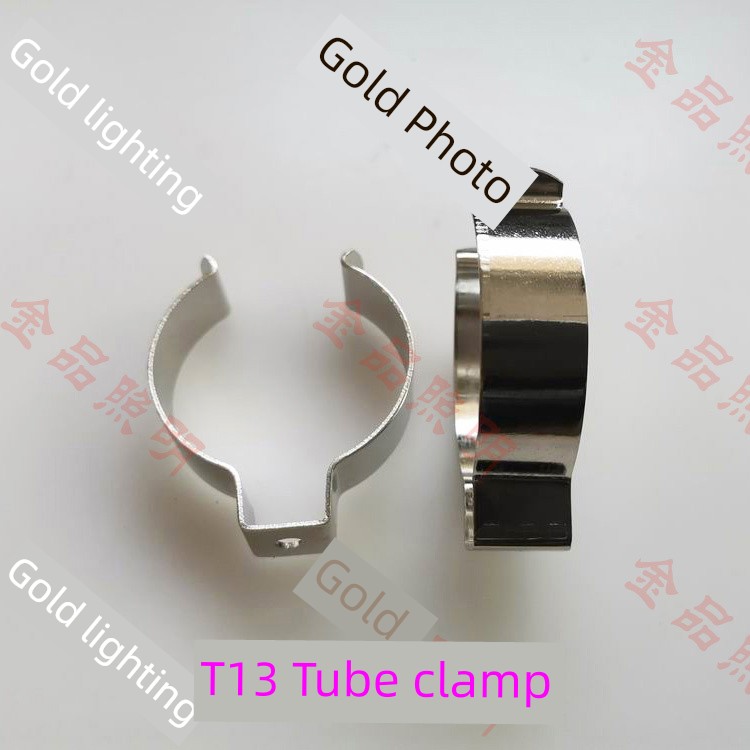

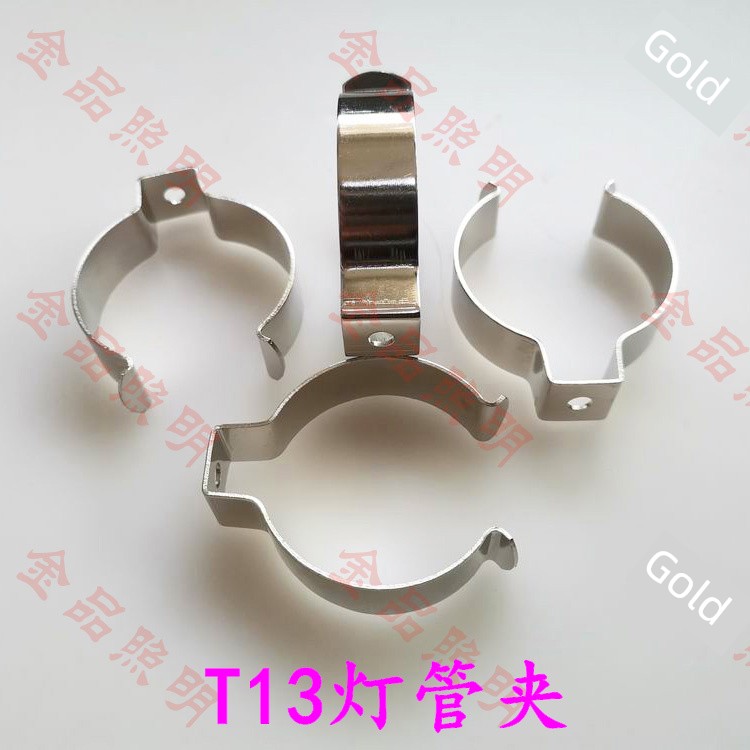

T–13Lamp clamp: width 42mm*height 50mm (side width 12.5mm)。Suitable for light tubes with a diameter of about 41-43mm.

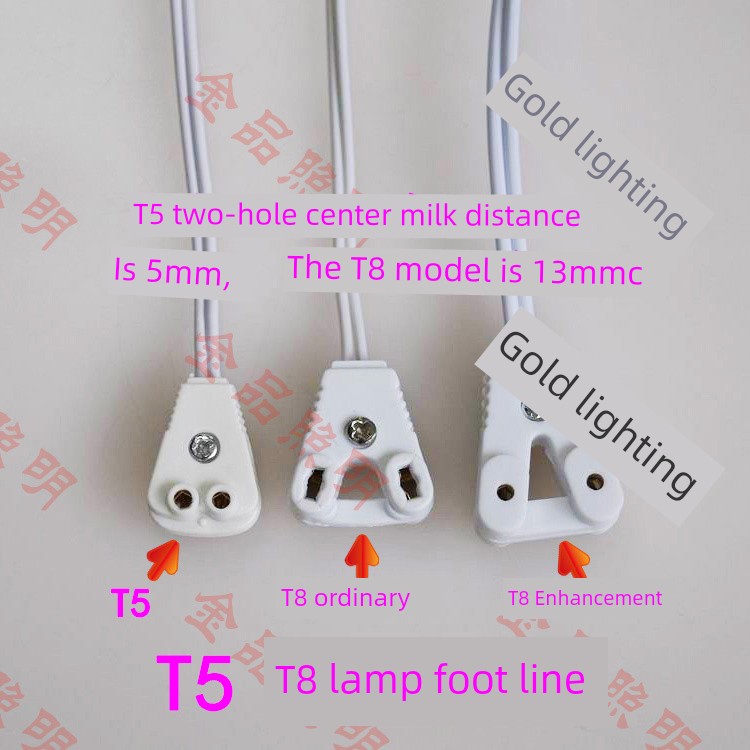

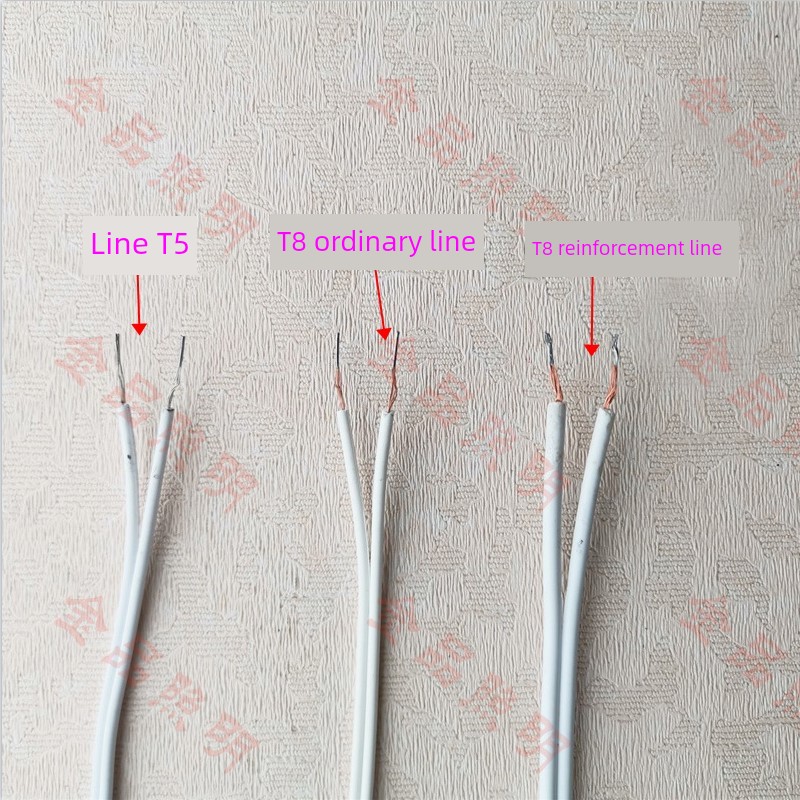

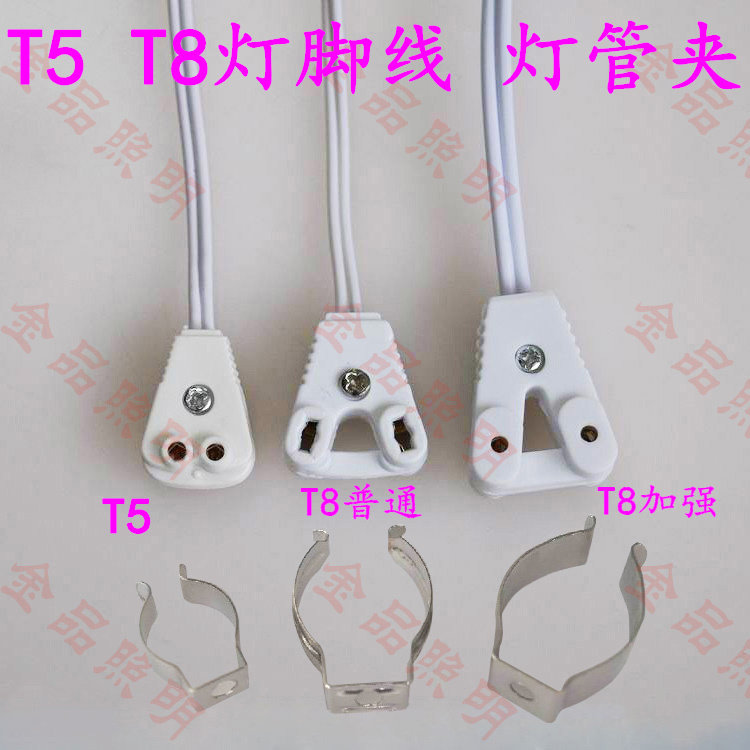

【product material】lamp cord: the t5 model uses copper core wiring, and the t8 models also use copper core wiring. (specifically, the t8 standard model features a 10-strand copper wire core, while the t8 enhanced model features a 28-strand copper wire core.)

Lamp tube clamp:

T4.T5/T8 standard / t8 heavy-duty / t13 heavy-duty models are all made of metallic manganese and are not waterproof.

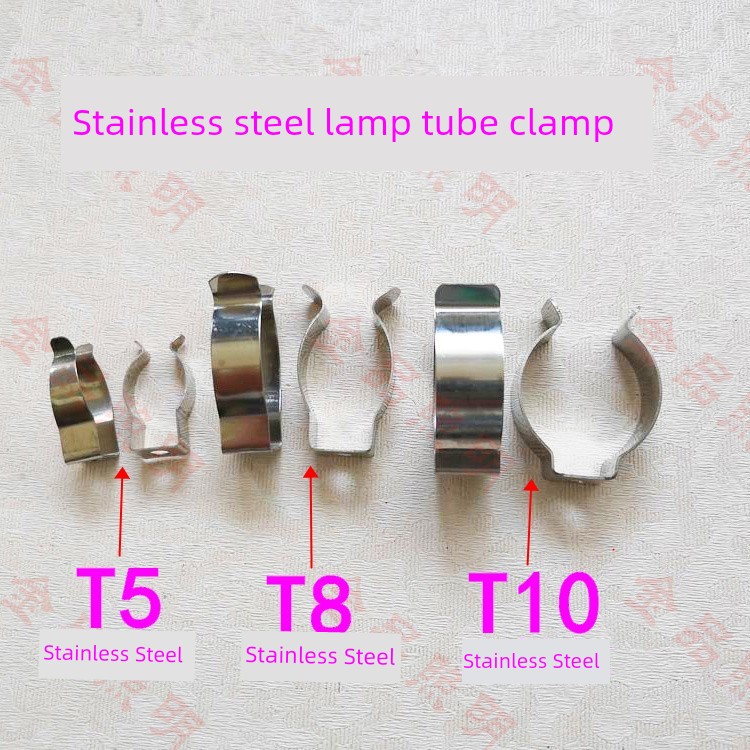

T3/t5/t6/t8/t10/t12 stainless steel models are all 201Stainless steel material,Can be used waterproof and rust-proof.

[product color] color as shown in the picture

[operating voltage] 0-250v 50/60hz

[power usage]It is recommended that the maximum power usage should be within 100w!

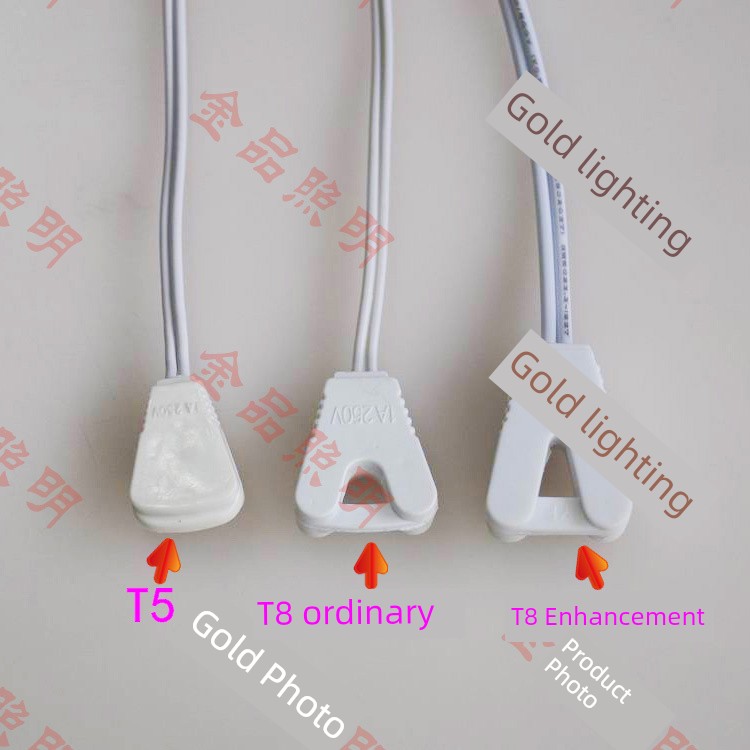

[power on mode] the lamp pin is a direct plug-in type

[product introduction]Mainly used in commercial, for home lamps, all-in-one fluorescent tubes, simple lamps, student diy lampsAnd simple personal lighting solutions, etc.。
